MCC PANEL OR MOTOR CONTROL CENTRE PANEL ARE USED FOR CONTROL ALL ELECTRICAL MOTOR WITH SAFETY. IN THIS BLOG ALL IMAGE ARE FREE

THIS IS 1000 KVAR APFC ELECTRICAL PANEL

ASLO CALLED AUTOMATIC POWER FACTOR CONTROLLER PANEL

WHICH ARE USE FOR IMPROVE PLAN POWER FACTOR.

FREE ELECTRICAL PANEL IMAGE

POWER DISTRIBUTION PANEL ARE USED

FOR POWER DISTRIBUTION

HT RELAY PANEL USED

FOR TRANSFORMER AND FEEDER PROTECTION

THIS IS 500 KVA STEP DOWN TRANSFORMER.

STEP DOWN TRANSFORMER USED

FOR HIGH VOLTAGE TO LOW VOLTAGE POWER CONVERSION.

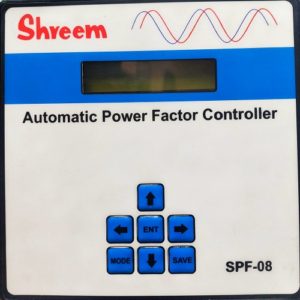

AUTOMATIC POWER FACTOR CONTROLLER PANEL CONTROL PF WITH AUTO WITH CT SENSING DEVICE

CRANE PANEL

MAINLY USED

FOR HEAVY MATERIAL LIFTING AND MOVING WITH UP-DOWN,LEFT RIGHT, ALSO FORWORD AND REVERSE

ELECTRICAL PANEL METERING ARE USE FOR SEE PANEL VOLTAGE AND CURRENT

THIS IS MULTIPLICATION METER

HT TRANSMISSION LINE

USE FOR

HIGH VOLTAGE TRANSFER

ONE PLACE TO ANOTHER PLACE

ILLUMINATED PUSH BUTTON ARE USE FOR ON/OFF PUSH BUTTON WITH INDICATION LAMP

AUTO TRANSFORMER CONTROLLER ARE USED FOR BREAKER AUTO START & STOP WITH SELECTION OF PRIORITY BREAKER

OTI- OIL TEMPERATURE INDICATOR

PIPE EARTHING IS VERY IMPORTANT ELECTRICAL DEVICE WHICH ARE USE FOR LEAKAGE CURRENT FOLLOW IN GROUND.

STAR-DETLA STARTER HAVE THREE CONTACTOR USE 1.MAIN CONTACTOR,2.DELTA & 3.STAR CONTACTOR FOR MORE DETAILS PLEASE READ STAR-DELTA STARTER

TRANSFORMER NAME PLATE

SHOW IMPORTANCE DATA

1. KVA – 2600KVA
2. HV OR HIGH VOLTAGE – 33KV
3. LV OR LOW VOLTAGE – 433V
4. CURRENT ( HV ) – 48.49A
5. CURRENT ( LV ) – 3467A
6. PHASE ( HV ) – 3
7. PHASE ( LV ) – 3
8. OIL TEMP. – 40 C
9. WINDING TEMP. – 50 C
10. TYPE OF COOLING – ONAN
11. CORE & WINDING WT. 3600 KG
12. WEIGHT OF OIL – 1870 KG
13. TOTAL WEIGHT – 7470 KG.
14. YEAR MFG. 2019

WTI – WINDING TEMPERATURE INDICATOR

SHOW WINGING TEMPERATURE IN TRANSFORMER
